Multifunctional Truck OCV 01
For all those aiming high
- Load capacity 110 kg
- Grip height 4600 mm
- Speed 6,5 km/h
Safer than any ladder and more practical than any mobile scaffold: the OCV is the perfect truck for working at heights of up to 4.6 metres, for narrow aisles and for anyone that wants to pick orders up to the third racking level.
The extendible stand-on platform lifts you up to a standing height of 3 metres, which means an effective working height of 4.6 metres. You can transport 110 kg on the multifunctional truck’s storage platform and 90 kg on the lifting platform. The lifting table can also be flexibly raised by up to 50 cm, which gives you optimal ergonomic access to your goods at all times. Thanks to its compact dimensions, you can manoeuvre the OCV easily and safely in even the tightest spaces.
And it's always ready to go whenever you need it: a lithium-ion battery that can be interim charged quickly and the appropriate charger are integrated as standard. As soon as the stand-on platform starts to lift, the doors of the driver’s platform lock automatically, so that you are optimally protected. This also applies for your environment: the OCV is fitted with the STILL Safety Light as standard: a blue spotlight projected on the floor in front of the truck gives other people in the warehouse early warning that the truck is coming. Whether in the small parts warehouse, in DIY stores, in archives, building management applications or at events: the OCV allows you to work safely, ergonomically and effortlessly at all times!
Compact dimensions
enable use in the tightest spaces
Always ready for use
thanks to lithium-ion battery with integrated charger
Optimal protection for operator and environment
thanks to features such as the STILL Safety Light
Work on a safe stand-on platform
at heights of up to 4.6 metres
Request to: OCV 01
Please fill out the form below. We will get back to you as soon as possible.
The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency
Simply easy
Safe and easy operation with no driving licence required
Interim charging at any 230 V socket thanks to lithium-ion battery and integrated charger
Low access point enables the operator to effortlessly board and exit the truck
Simply powerful
Load capacity up to 90 kg on the lifting platform and up to 110 kg on the transport platform
Lifts operators and goods effortlessly and safely to a working height of up to 4.6 metres
Driving speed of up to 6.5 km/h
Simply safe
The STILL Safety Light increases safety for everyone in the warehouse
Safe manoeuvring even at great working heights thanks to automatic adjustment of the maximum speed
Automatic locking of the door protects the operator when the stand- on platform is raised
The stand-on platform can also be lowered by a second person from floor level
Simply flexible
With a total weight of just 800 kg, the truck is ideally suited for use on mezzanine floors or in lifts
Secure storage space thanks to storage options such as cup holders and document holder
Suitable for order picking work from the floor up to the third racking level
Range of possible applications from small parts warehouses through to a ladder replacement in building management or the events industry

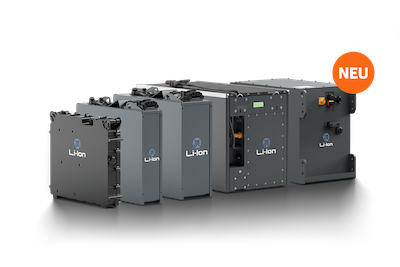

STILL Li-Ion Technology inside
The perfectly harmonised power system for reducing operating costs and increased truck availability.
More about STILL Li-Ion Technology
Request to: OCV 01
Please fill out the form below. We will get back to you as soon as possible.
Equipment options
Sharpening all senses: we can support you with our wide range of smart driver assistance systems and functions which will make your day-to-day work significantly easier. You will be able to drive in a safer, more comfortable, efficient and fatigue-free manner – in every driving situation.
The visual warning system for fewer accidents
The blue warning light, STILL SafetyLight 4plus, significantly increases work safety in areas which are confusing or full of bends. The blue light spots are projected approx. 5 m in front of and behind the truck and warn people about the approaching truck to prevent impending collisions.
Automatic speed adjustment for curves
The speed limiter controlled by steering angle reduces possible damage to goods by adapting to an appropriate cornering speed. This assistance function is available for various forklift trucks and warehouse technology devices, and regulates the driving speed automatically according to the steering angle. In other words, the driver doesn’t need to worry about speed when cornering. The truck automatically decelerates precisely as much as necessary for the operator to drive as safely but as quickly as possible.
| Model | Maximum capacity (kg) | Maximum reach height (mm) | Travel speed (km/h) | Battery voltage (V) |
|---|---|---|---|---|
| OCV 01 | 110 | 4600 | 6.0/6.5 | 24 |
Downloads
The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
